Product Features:

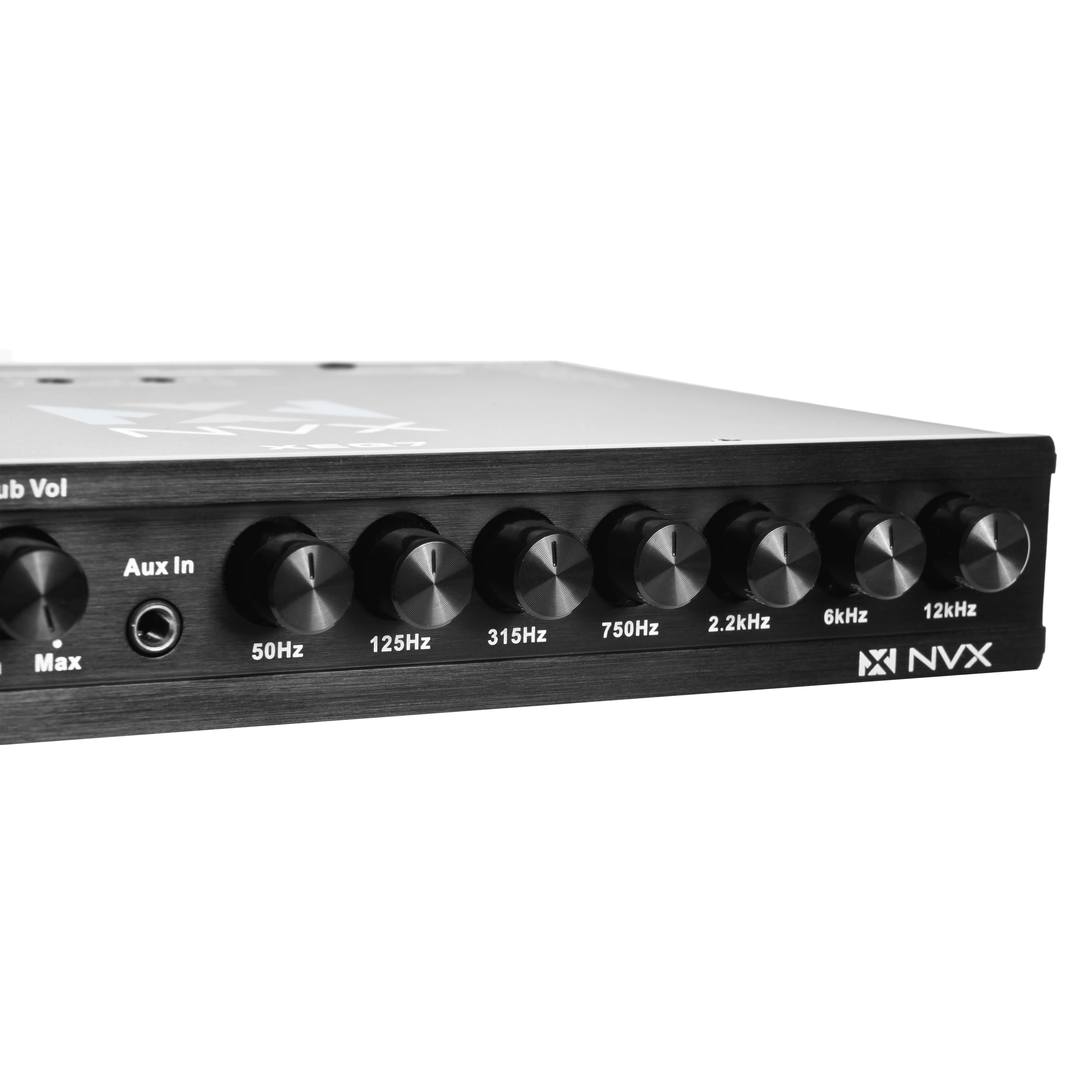

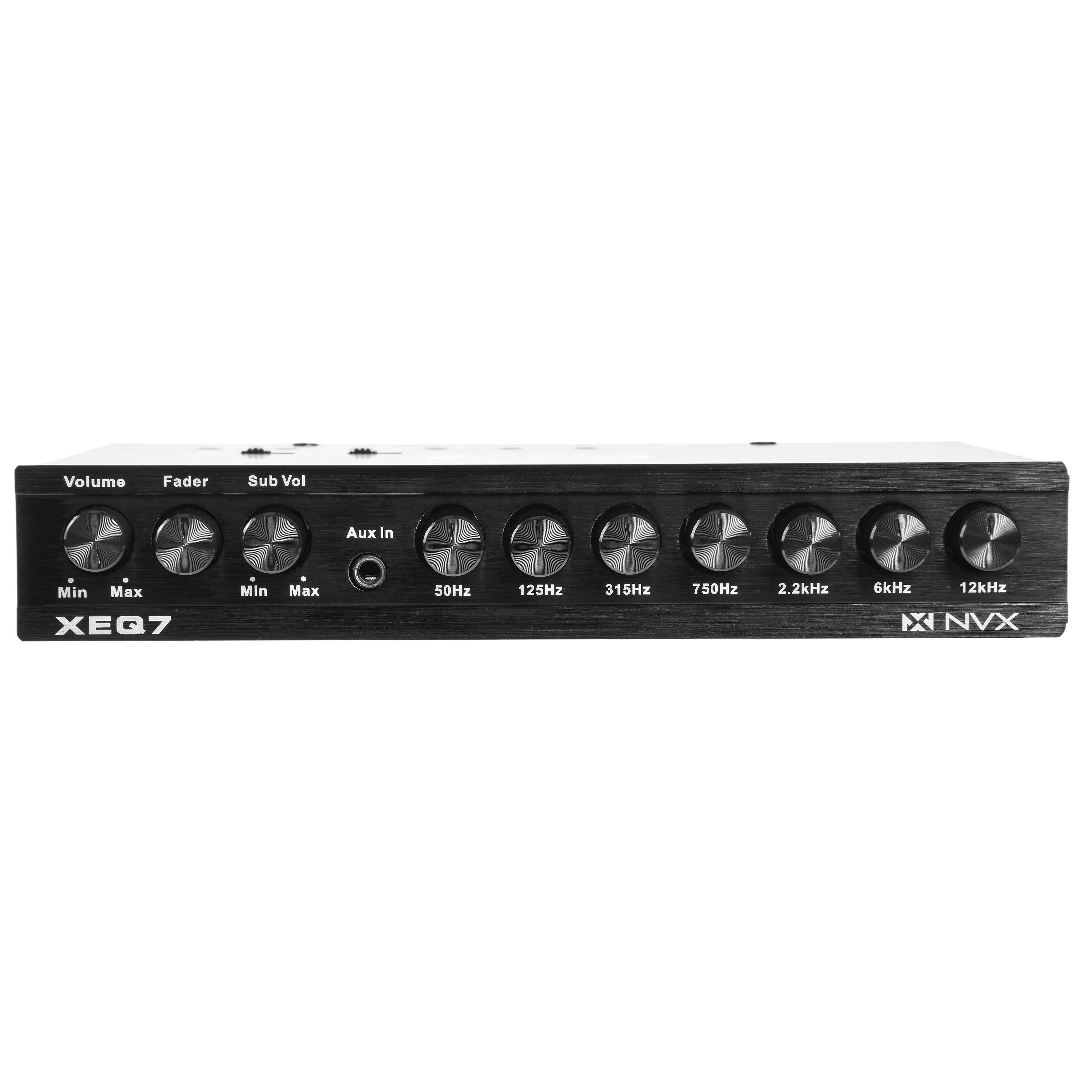

• 7 band-Band Graphic Equalizer
• Gold-plated contacts for optimum signal transfer

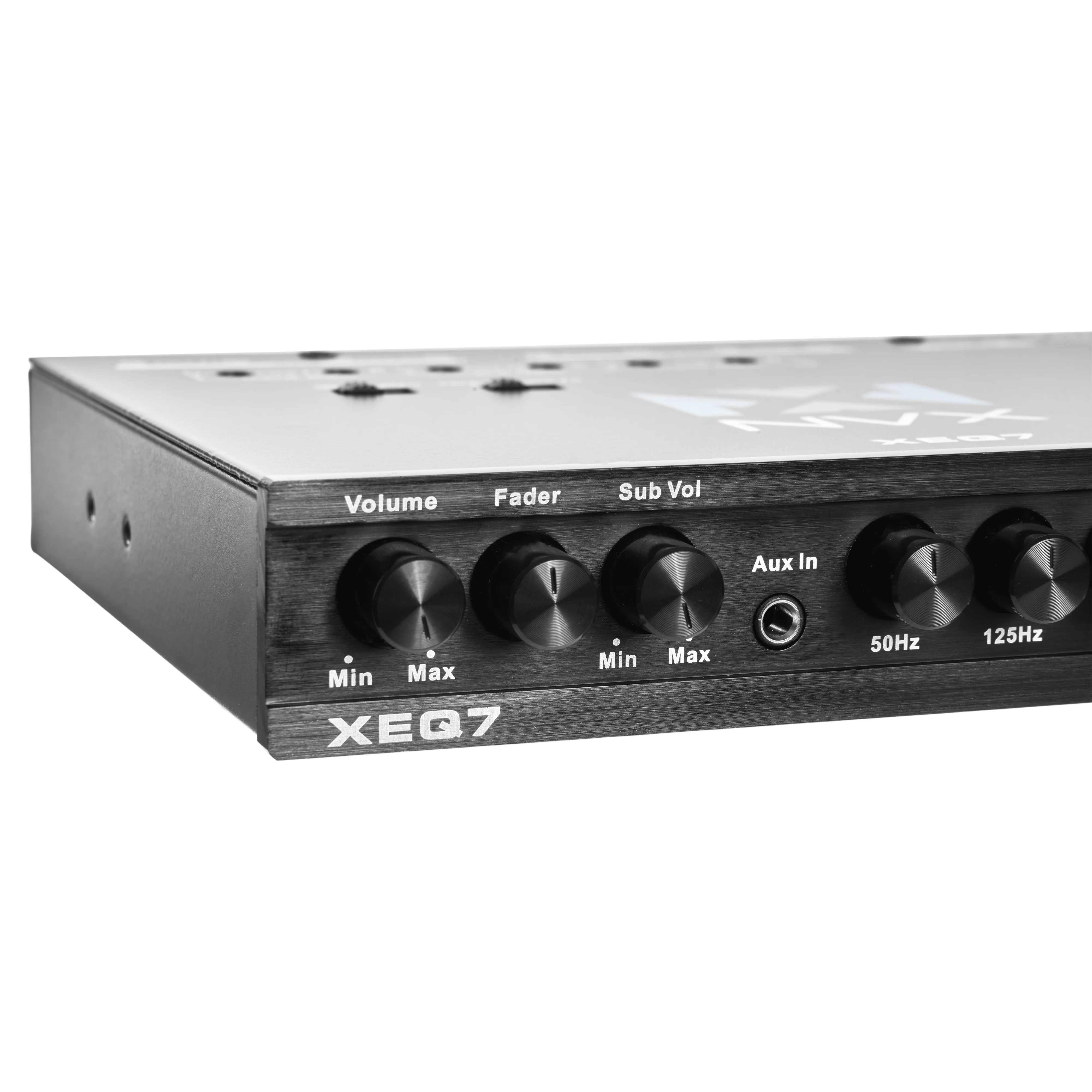

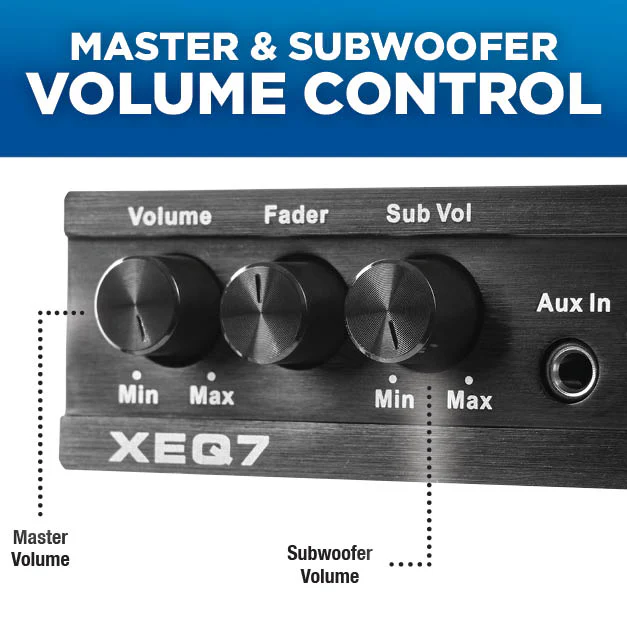

• Master and subwoofer volume control

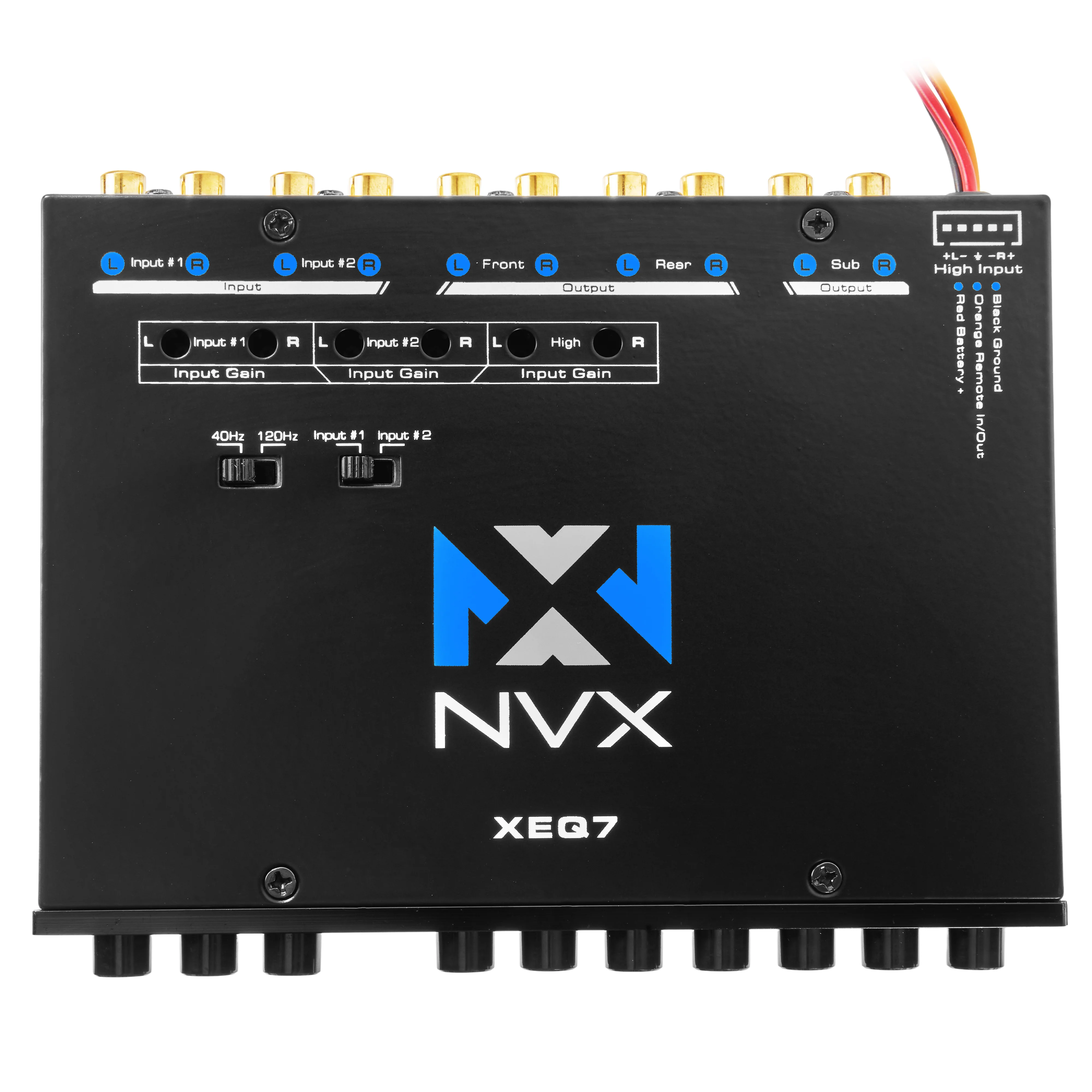

• 3 Sets of preamp outputs (front, rear and subwoofer)

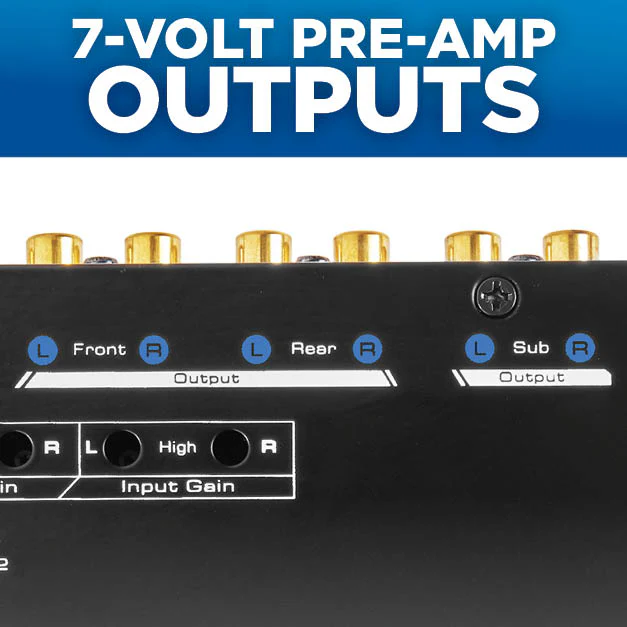

• 7 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

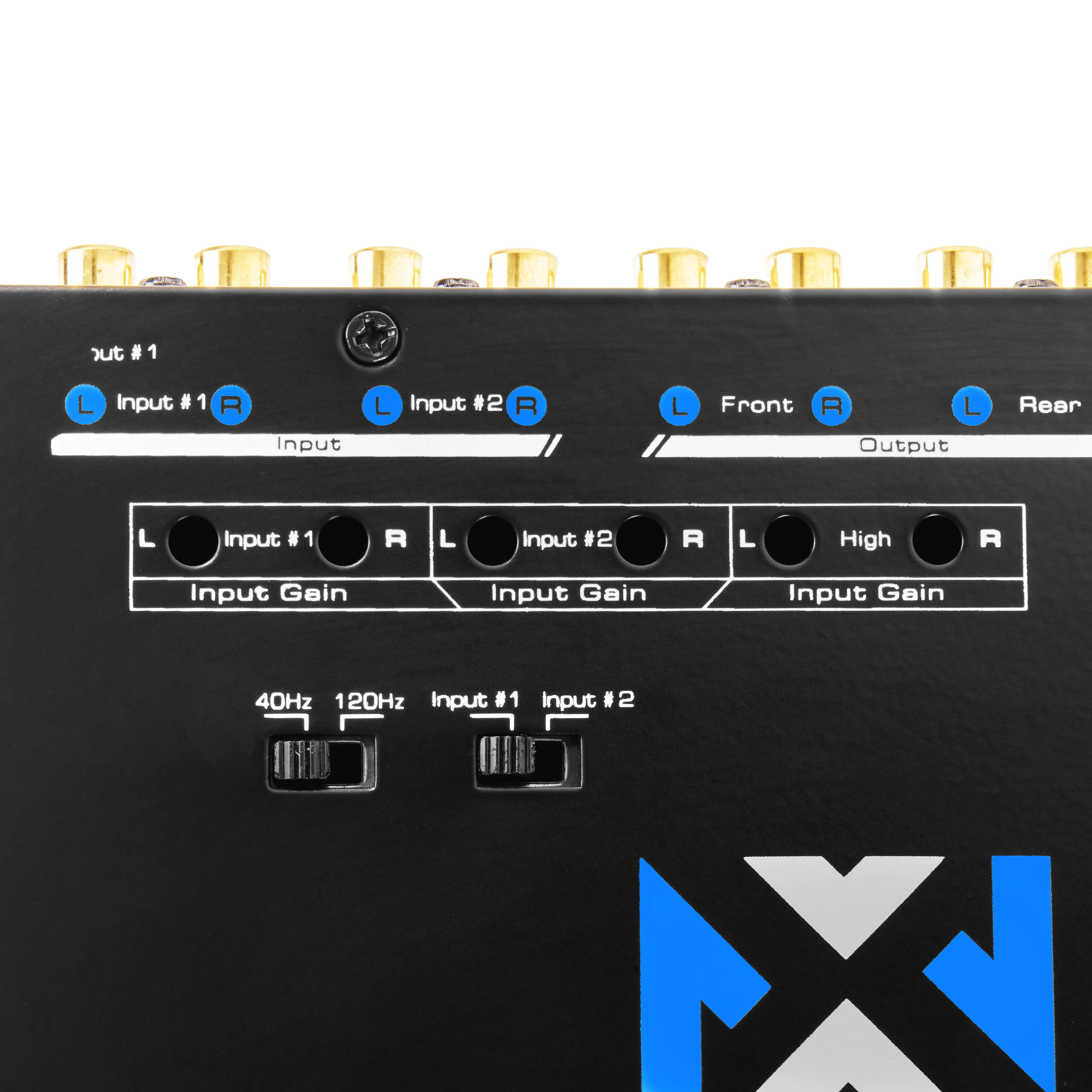

• Left and right gain adjustments

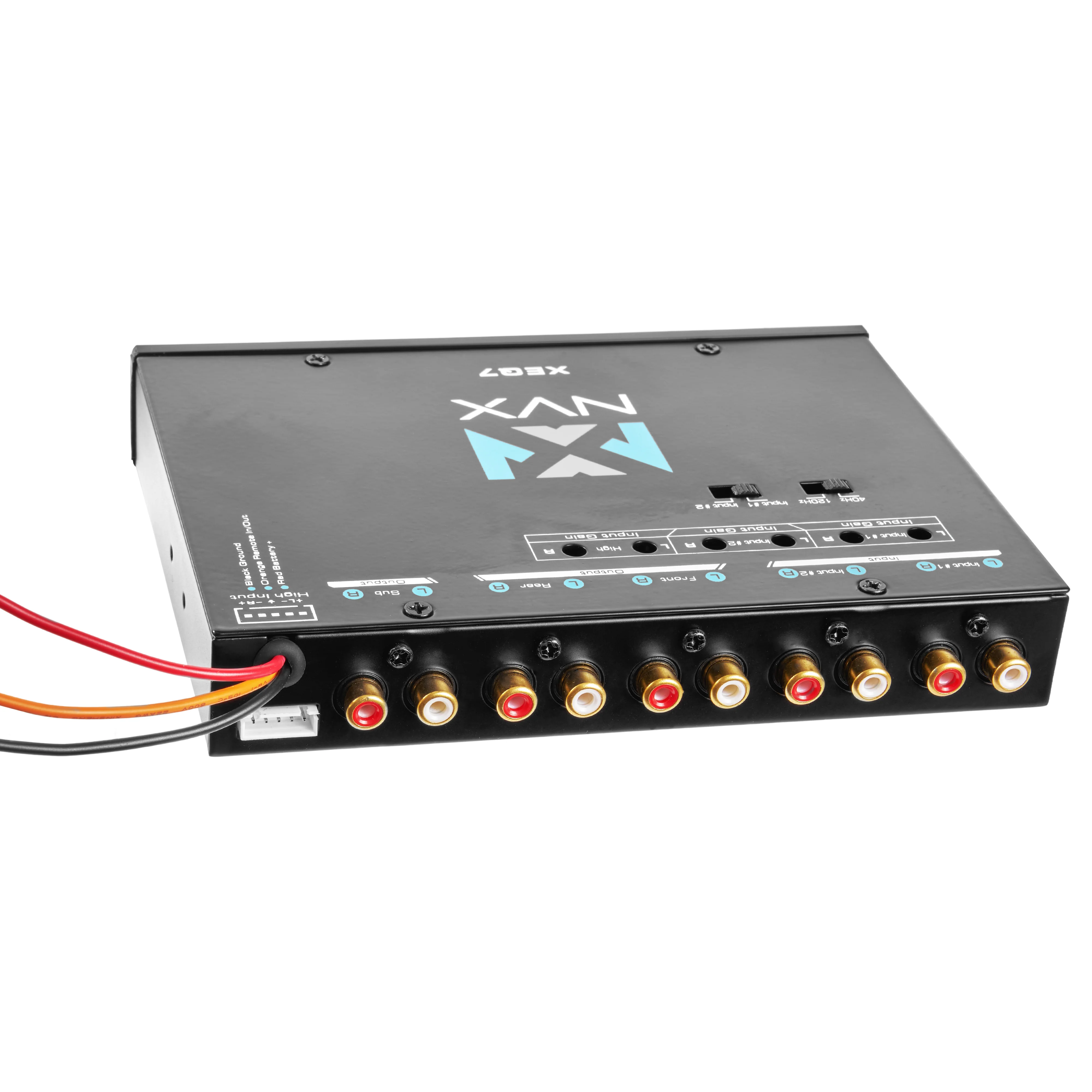

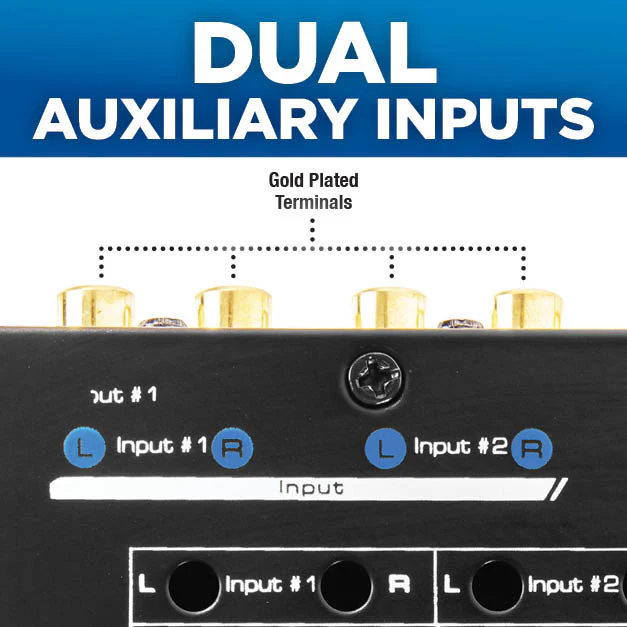

• 2 Pairs of RCA inputs
• Integrated blue LED illumination
• Built-in 18dB/oct electronic crossover fixed at 60Hz or 90Hz
• Separate controls for volumes and input selections
• ISO mounting holes and removable trim ring
• Pairable with XUBT3 control knob (sold separately)
• 1-year warranty from the original purchase date

Product Specifications:

• Number of Bands: 7 band
• Input sensitivity: 0.5 - 3 volts
• Signal-to-noise ratio: 100 dB
• Cut/Boost: 12 dB (15dB for subwoofer bands)
• THD (Total Harmonic Distortion): 0.005%
• Frequency response: 10 - 50000 Hz
• Channel separation: 82 dB
• Dimensions: 4.125" W x 4.125" D x 1" H



Check out NVX XEQ7 Owner's Manual
