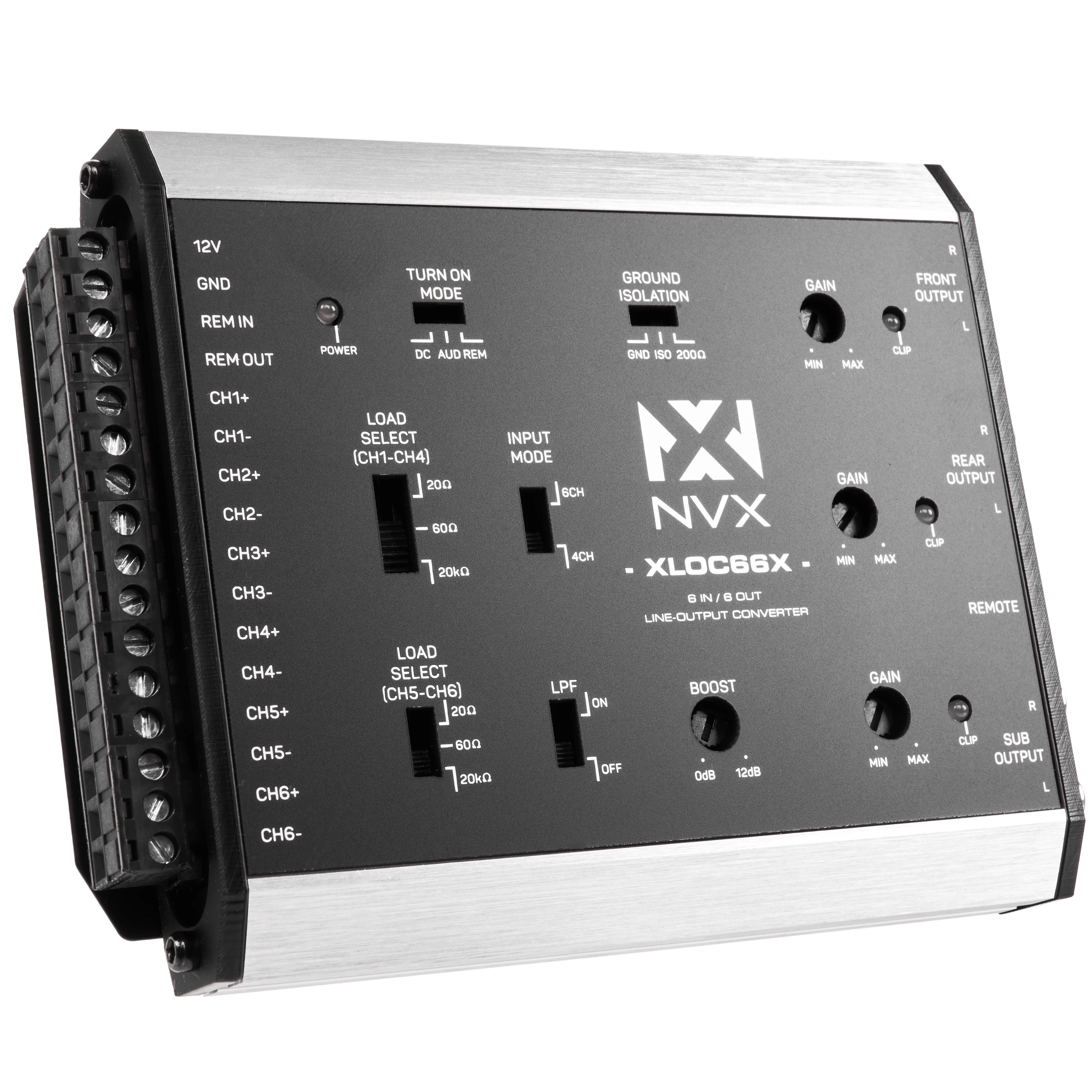

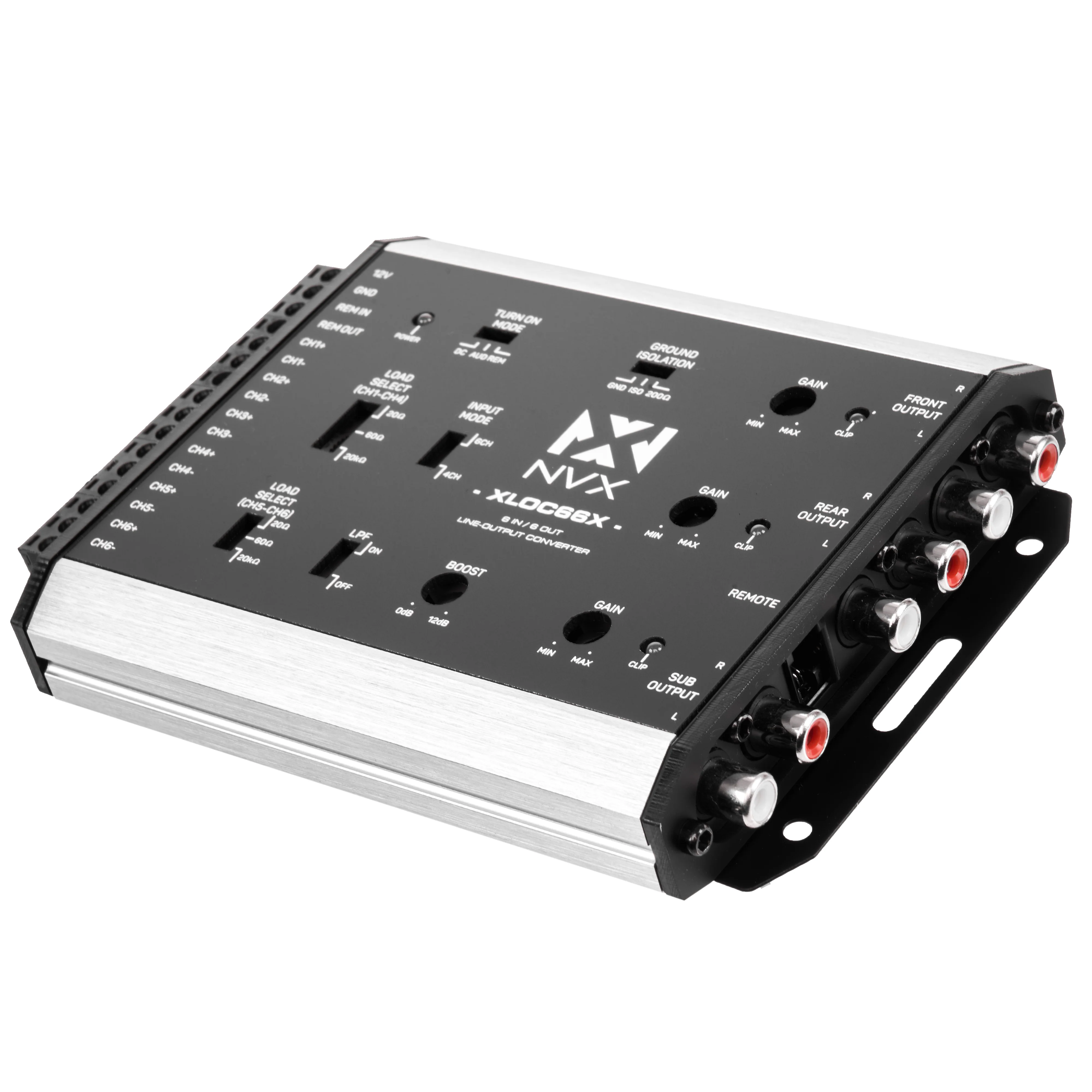

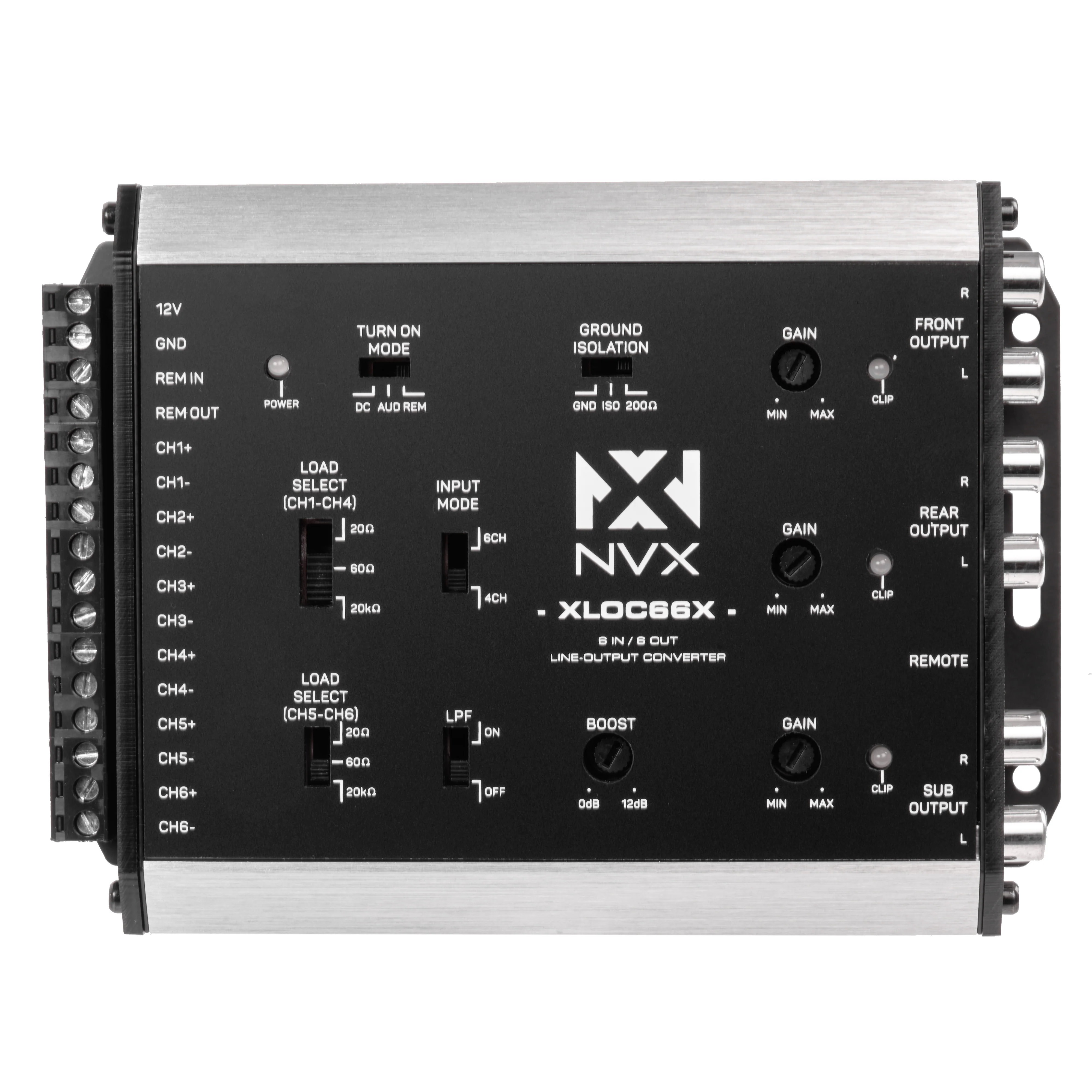

XLOC66X 6 Input / 6 Output Line Output Converter with Impedance Matching and Remote Level Control
Product Features:
- Active 6 channel line output converter
- 6 channels of speaker-level inputs handle up to 40V (400 watts RMS)

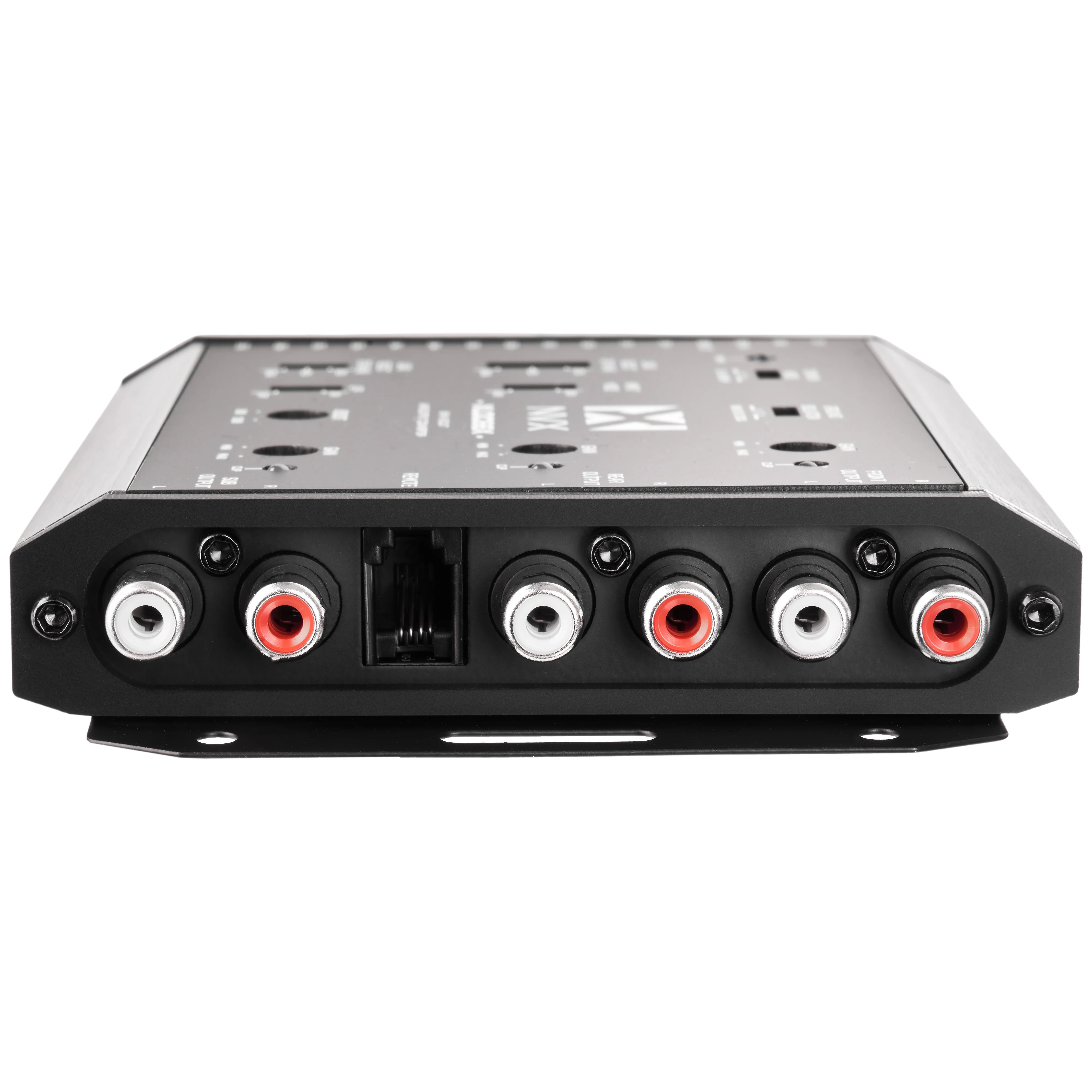

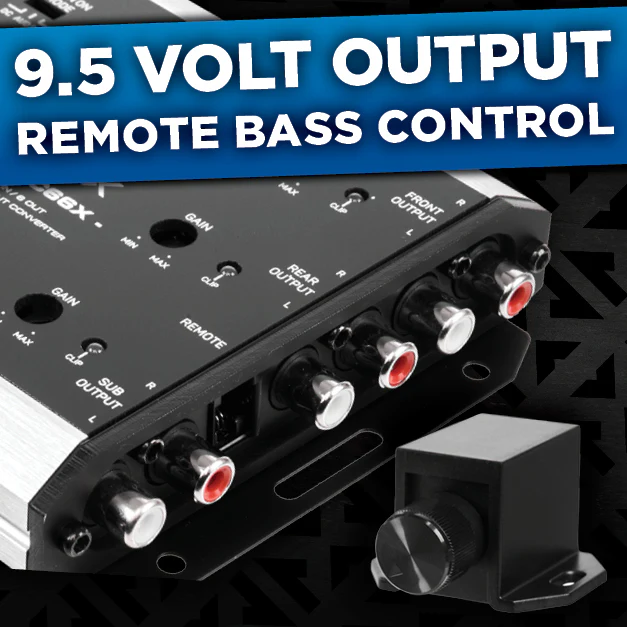

- 6 channels of RCA outputs provide up to 9.5 volts of output
- Designed to work with factory audio systems

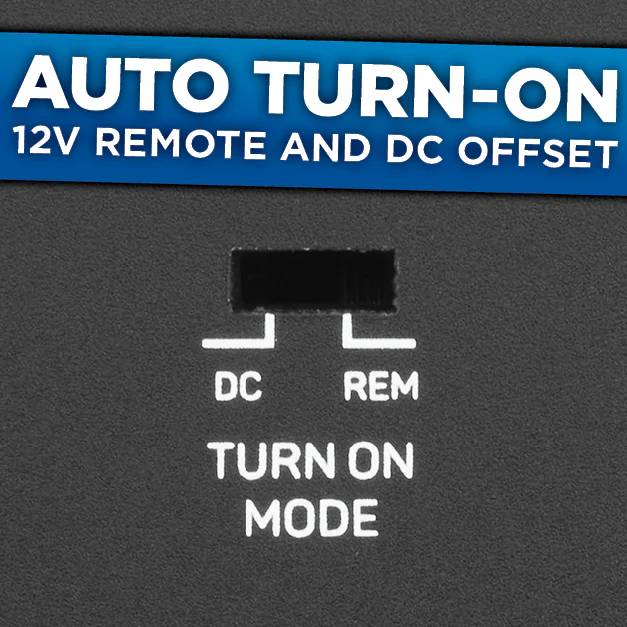

- Auto turn-on via DC offset or Audio Detection
- Load selection switch (20, 60, or 20K ohms) to prevent factory stereo shut-down
- Adjustable 0 - 12dB Bass Boost (Fixed at 45 Hz)
- Selectable 250 Hz full range or low pass filter switch
- 12 volt turn-on output for aftermarket amplifiers
- Selectable Ground Isolation switch to eliminate ground and alternator noise

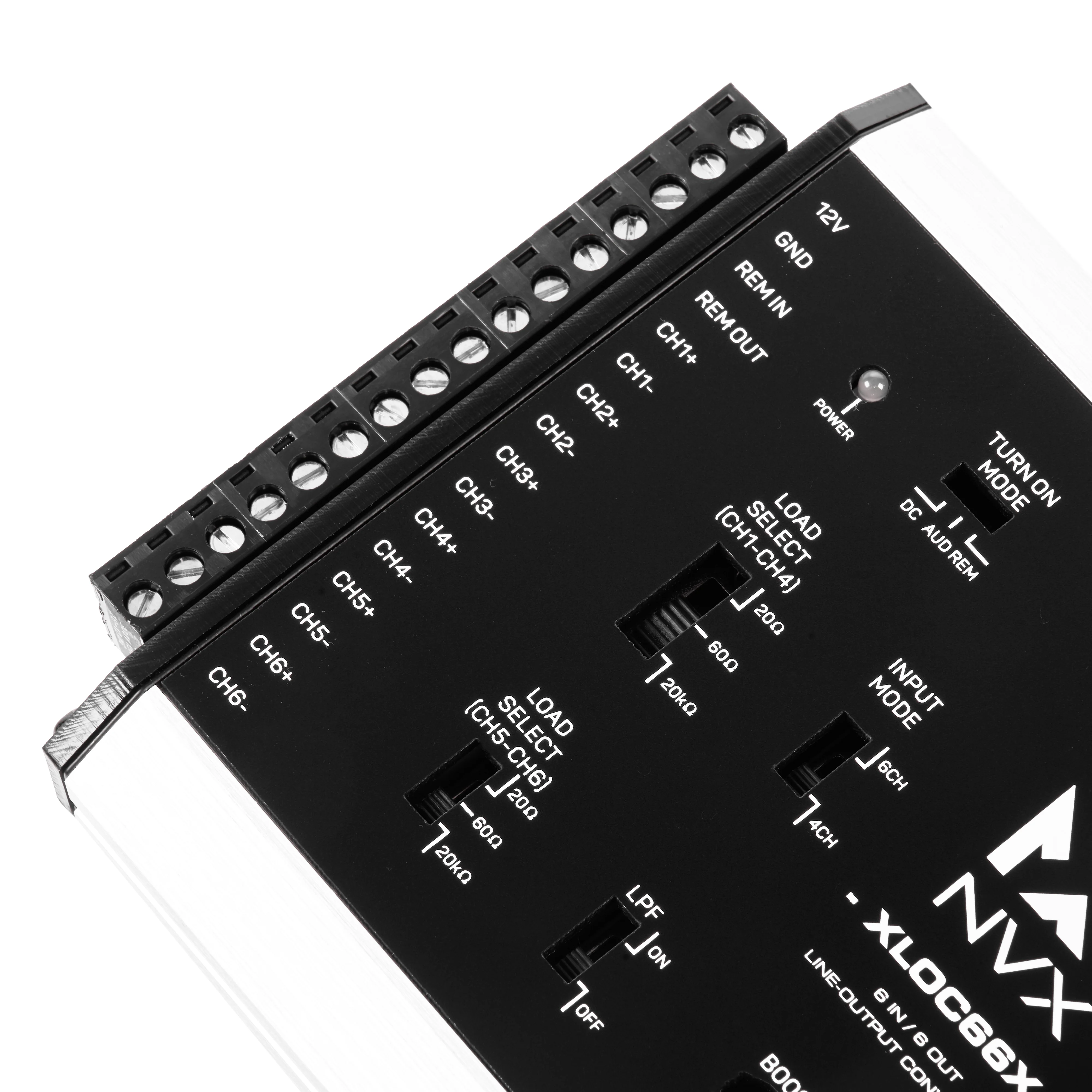

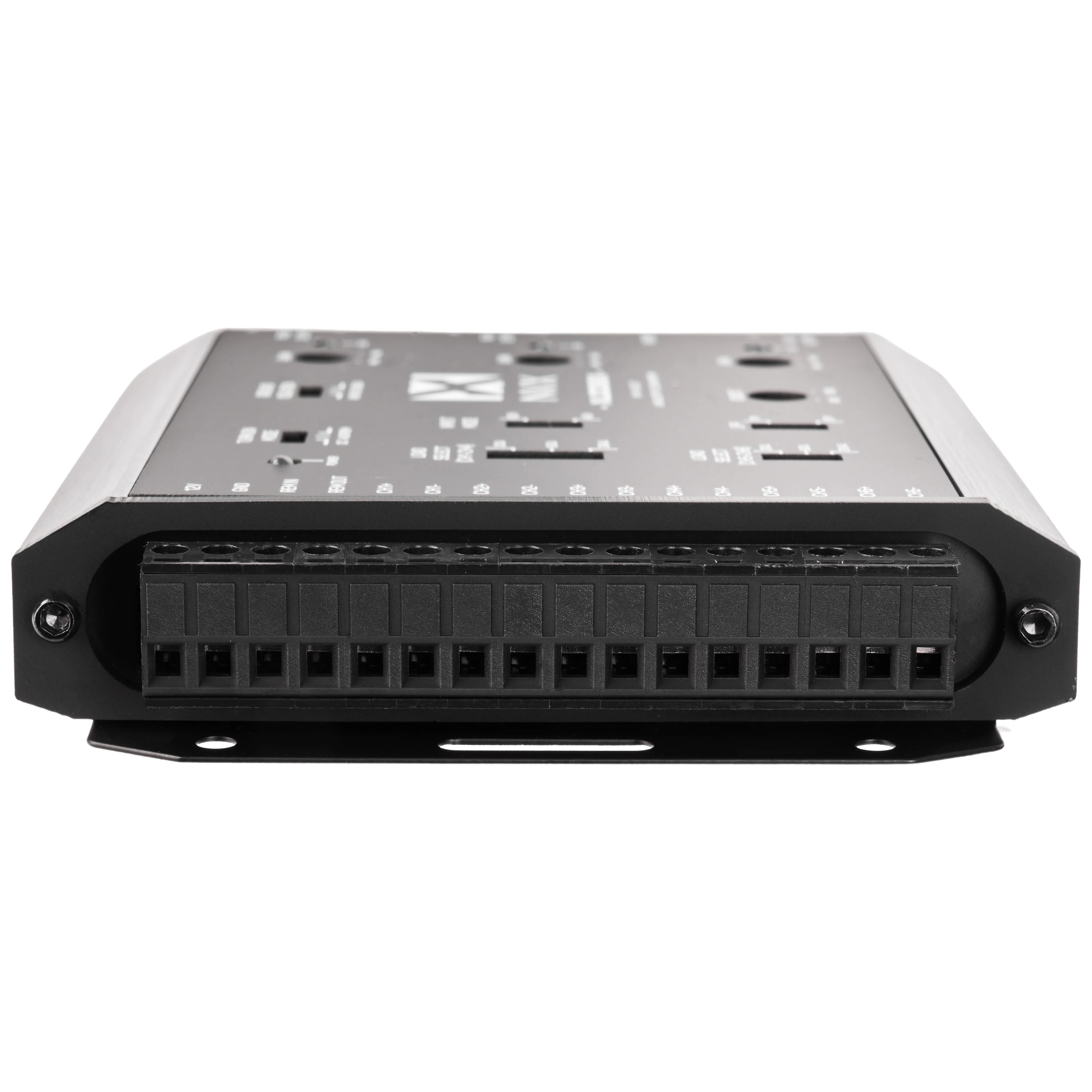

- Molex terminals for speaker signal and power

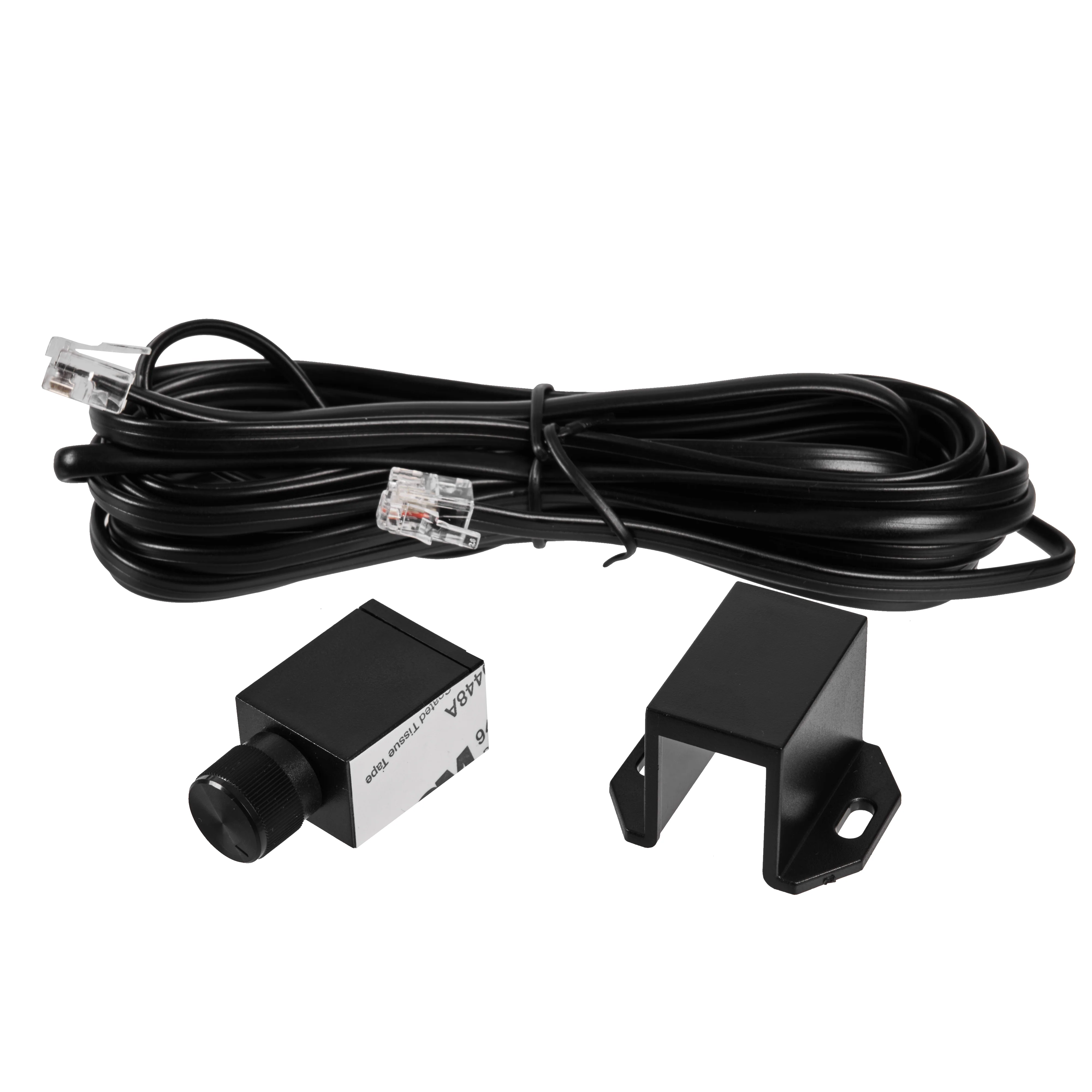

- Wired remote bass level control included

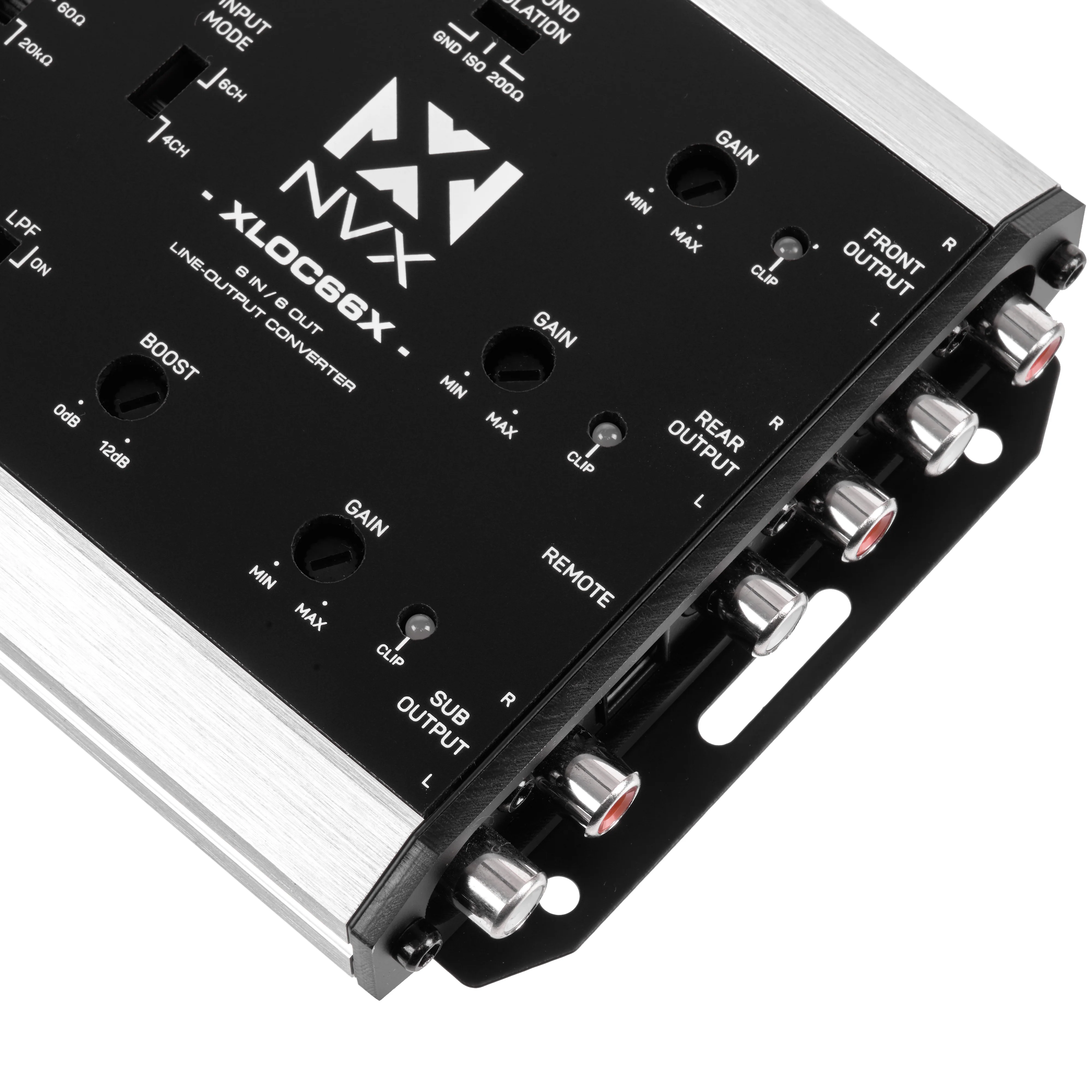

- LED clip status indicator
- Selectable impedance load: 20, 60, 20k ohm
- Frequency response: 10 - 20000 Hz
- Signal-to-noise ratio: 110dB
- Total harmonic distortion (THD): 0.01%

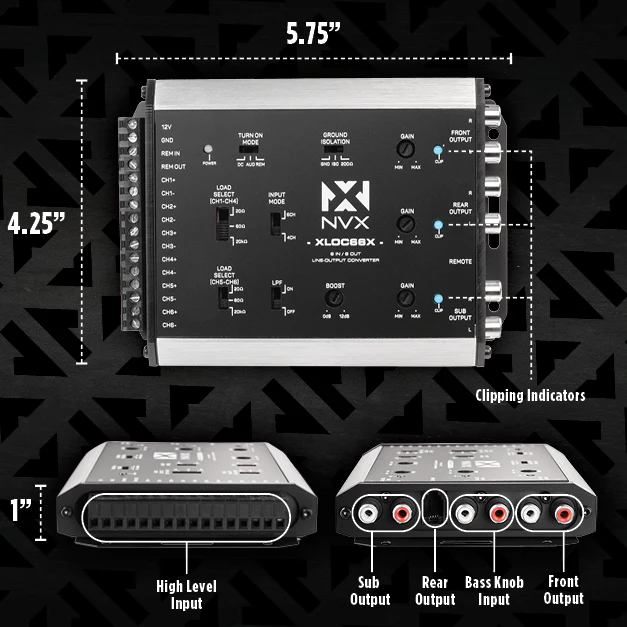

- Dimensions: 4.33" W x 5.81" L x 0.96" H
- 1-year Warranty from the Original Purchase Date
Product Information
Product Information
Shipping & Returns
Shipping & Returns
XLOC66X 6 Input / 6 Output Line Output Converter with Impedance Matching and Remote Level Control
XLOC66X 6 Input / 6 Output Line Output Converter with Impedance Matching and Remote Level Control
Product Features:
- Active 6 channel line output converter
- 6 channels of speaker-level inputs handle up to 40V (400 watts RMS)
- 6 channels of RCA outputs provide up to 9.5 volts of output
- Designed to work with factory audio systems
- Auto turn-on via DC offset or Audio Detection
- Load selection switch (20, 60, or 20K ohms) to prevent factory stereo shut-down
- Adjustable 0 - 12dB Bass Boost (Fixed at 45 Hz)
- Selectable 250 Hz full range or low pass filter switch
- 12 volt turn-on output for aftermarket amplifiers
- Selectable Ground Isolation switch to eliminate ground and alternator noise
- Molex terminals for speaker signal and power
- Wired remote bass level control included
- LED clip status indicator
- Selectable impedance load: 20, 60, 20k ohm
- Frequency response: 10 - 20000 Hz
- Signal-to-noise ratio: 110dB
- Total harmonic distortion (THD): 0.01%
- Dimensions: 4.33" W x 5.81" L x 0.96" H
- 1-year Warranty from the Original Purchase Date
$31.50
Original: $89.99
-65%XLOC66X 6 Input / 6 Output Line Output Converter with Impedance Matching and Remote Level Control—
$89.99
$31.50Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Product Features:
- Active 6 channel line output converter
- 6 channels of speaker-level inputs handle up to 40V (400 watts RMS)
- 6 channels of RCA outputs provide up to 9.5 volts of output
- Designed to work with factory audio systems
- Auto turn-on via DC offset or Audio Detection
- Load selection switch (20, 60, or 20K ohms) to prevent factory stereo shut-down
- Adjustable 0 - 12dB Bass Boost (Fixed at 45 Hz)
- Selectable 250 Hz full range or low pass filter switch
- 12 volt turn-on output for aftermarket amplifiers
- Selectable Ground Isolation switch to eliminate ground and alternator noise
- Molex terminals for speaker signal and power
- Wired remote bass level control included
- LED clip status indicator
- Selectable impedance load: 20, 60, 20k ohm
- Frequency response: 10 - 20000 Hz
- Signal-to-noise ratio: 110dB
- Total harmonic distortion (THD): 0.01%
- Dimensions: 4.33" W x 5.81" L x 0.96" H
- 1-year Warranty from the Original Purchase Date
