Product Features:

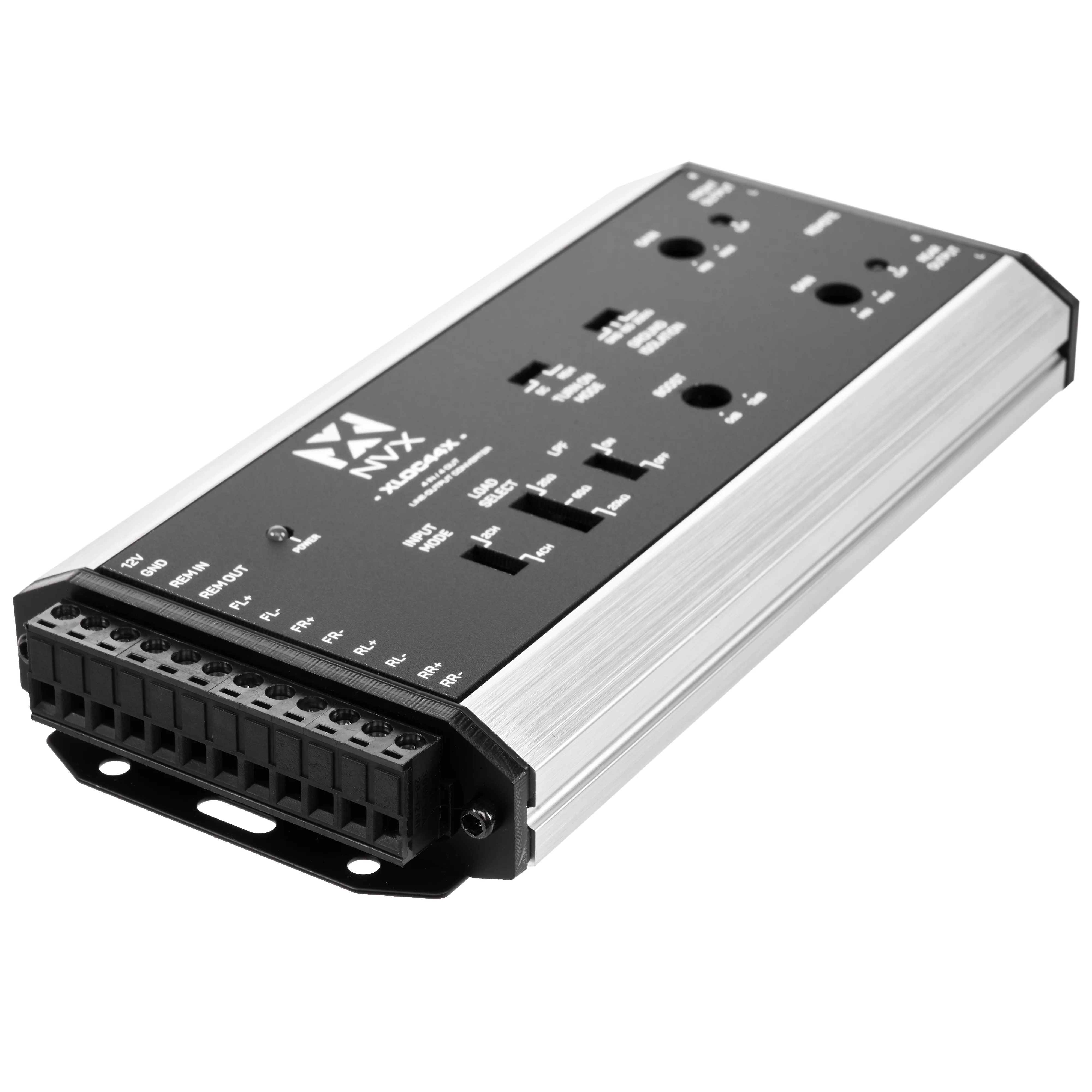

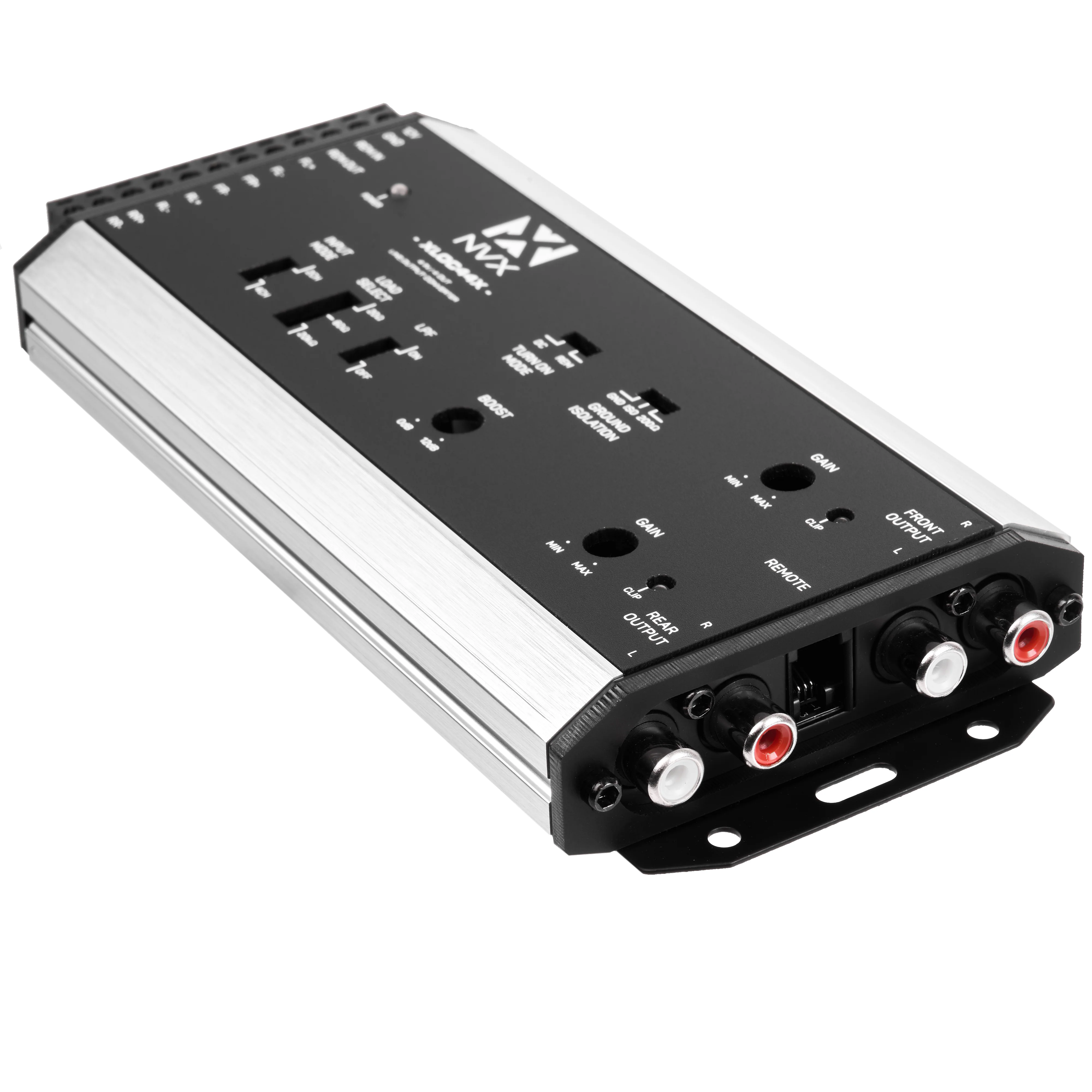

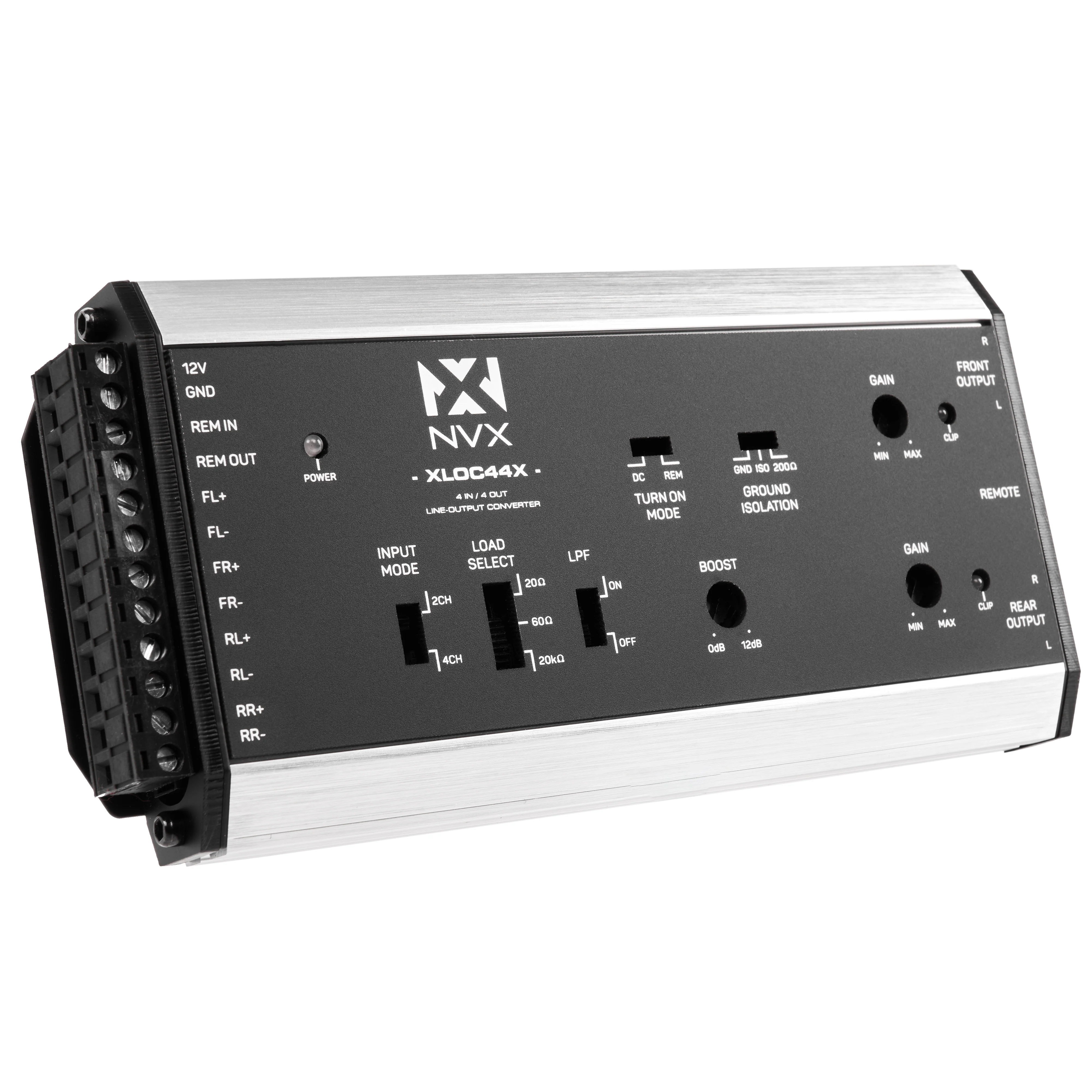

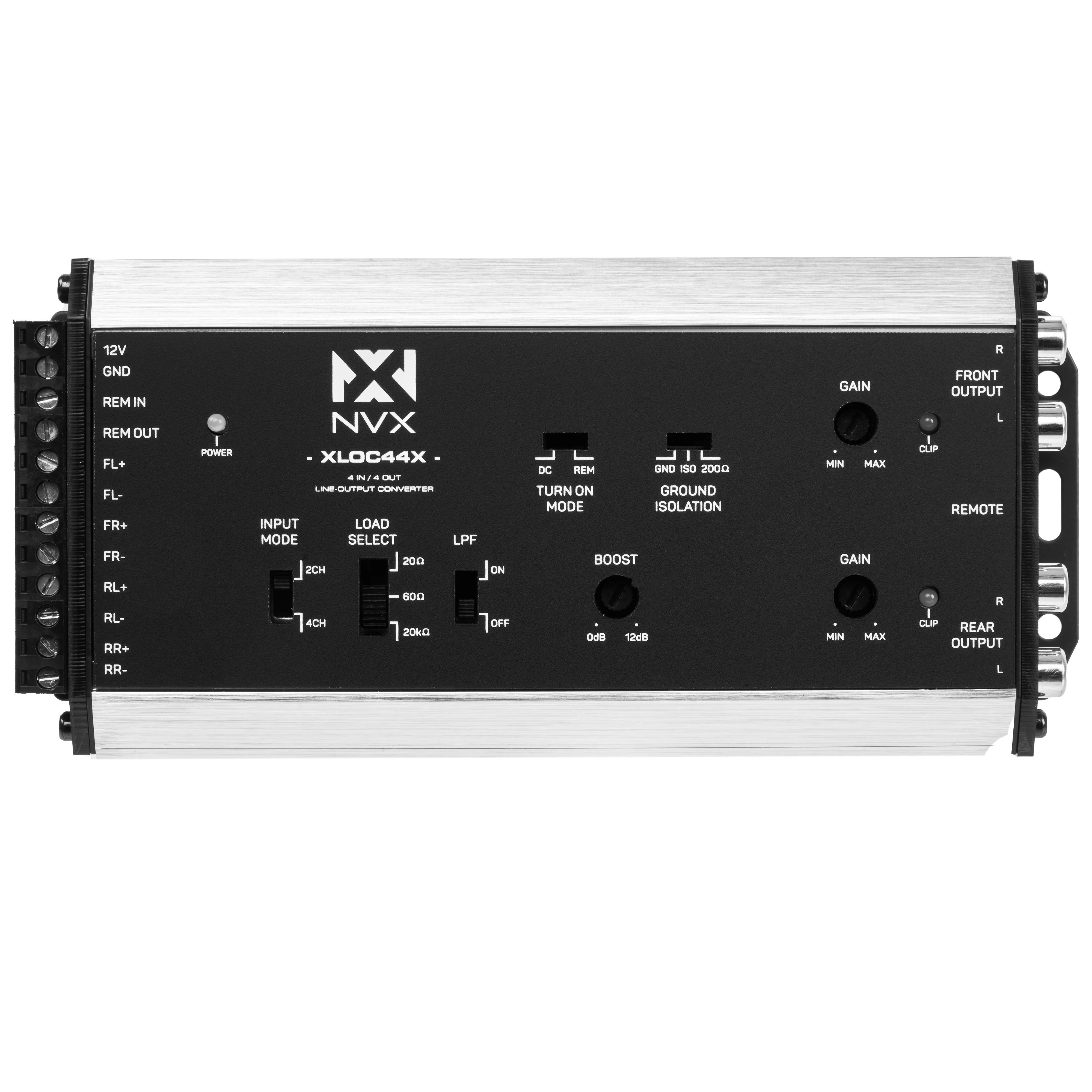

• Active 4 channel line output converter
• 2 channels of speaker-level inputs handle up to 40V (400 watts RMS)

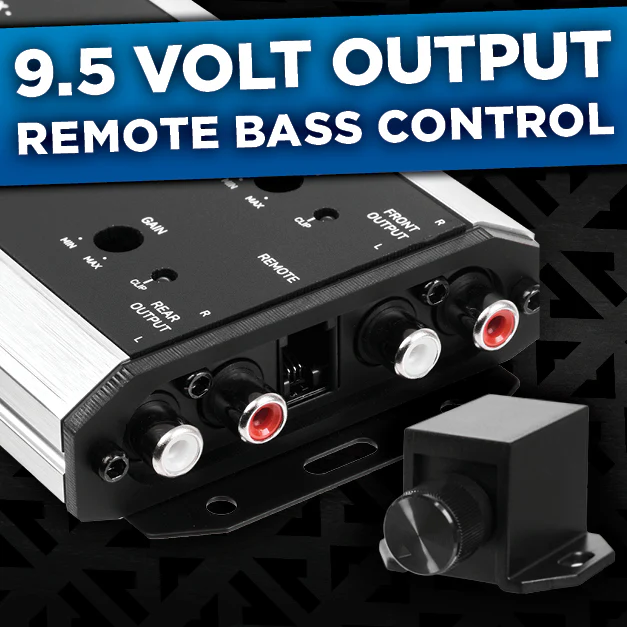

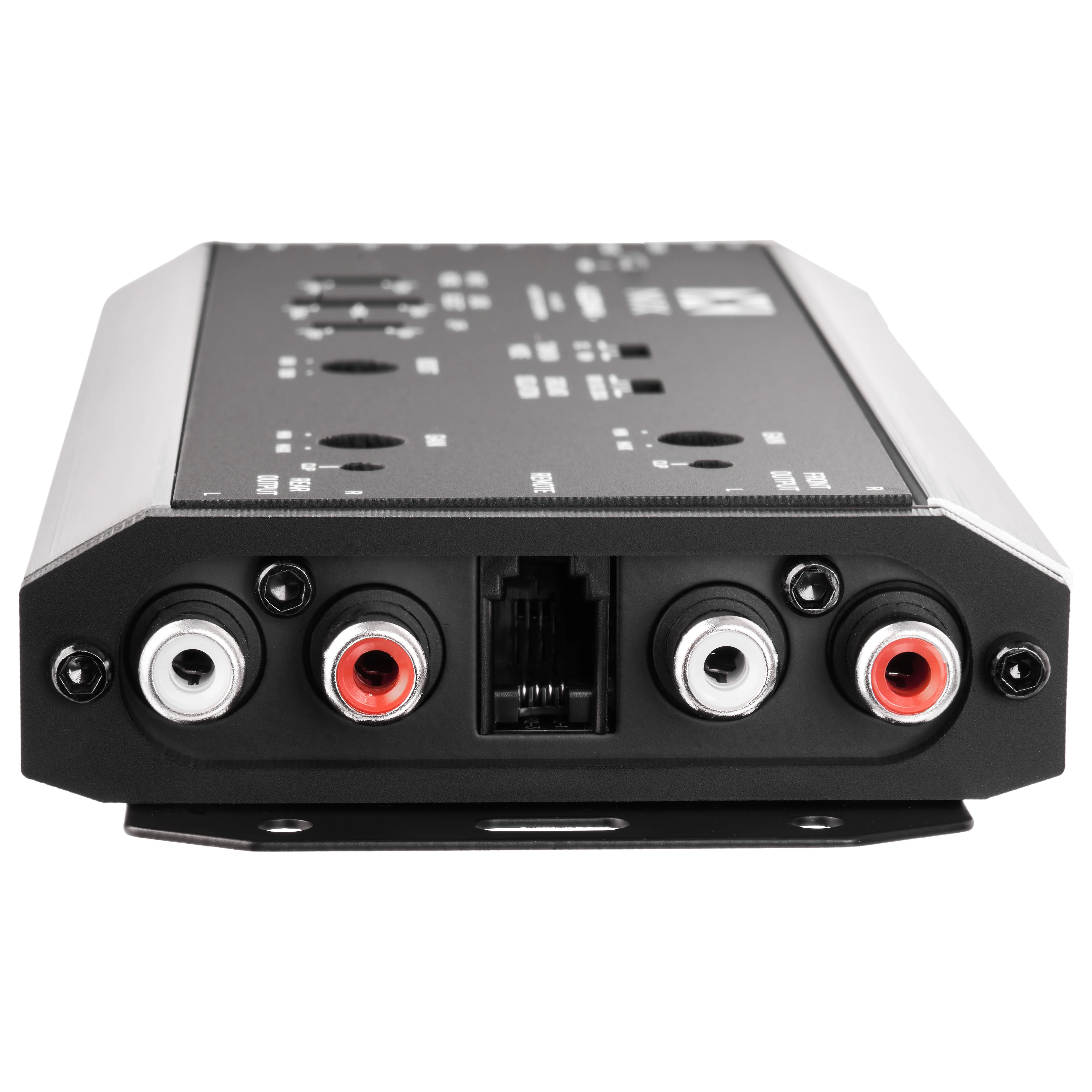

• 4 channels of RCA outputs provide up to 9.5 volts of output
• Designed to work with factory audio systems

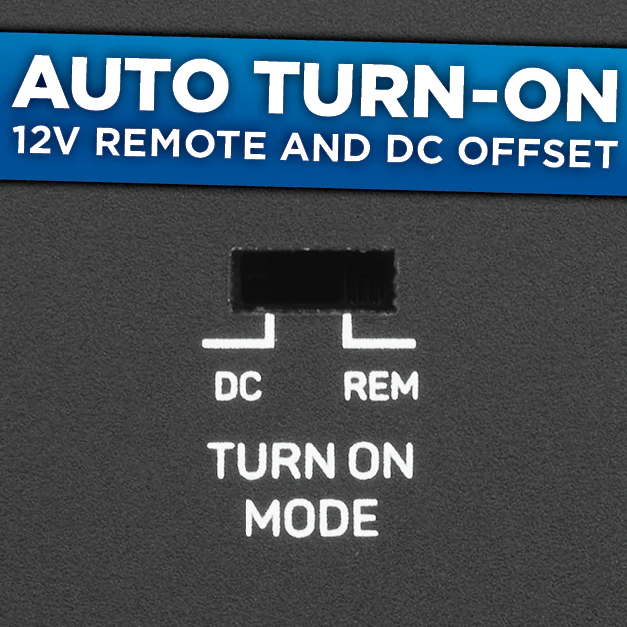

• Auto turn-on via DC offset or Audio Detection
• Load selection switch (20, 60, or 20K ohms) to prevent factory stereo shut-down
• Adjustable 0 - 12dB Bass Boost (Fixed at 45 Hz)
• Selectable 250 Hz full range or low pass filter switch
• 12 volt turn-on output for aftermarket amplifiers
• Selectable Ground Isolation switch to eliminate ground and alternator noise

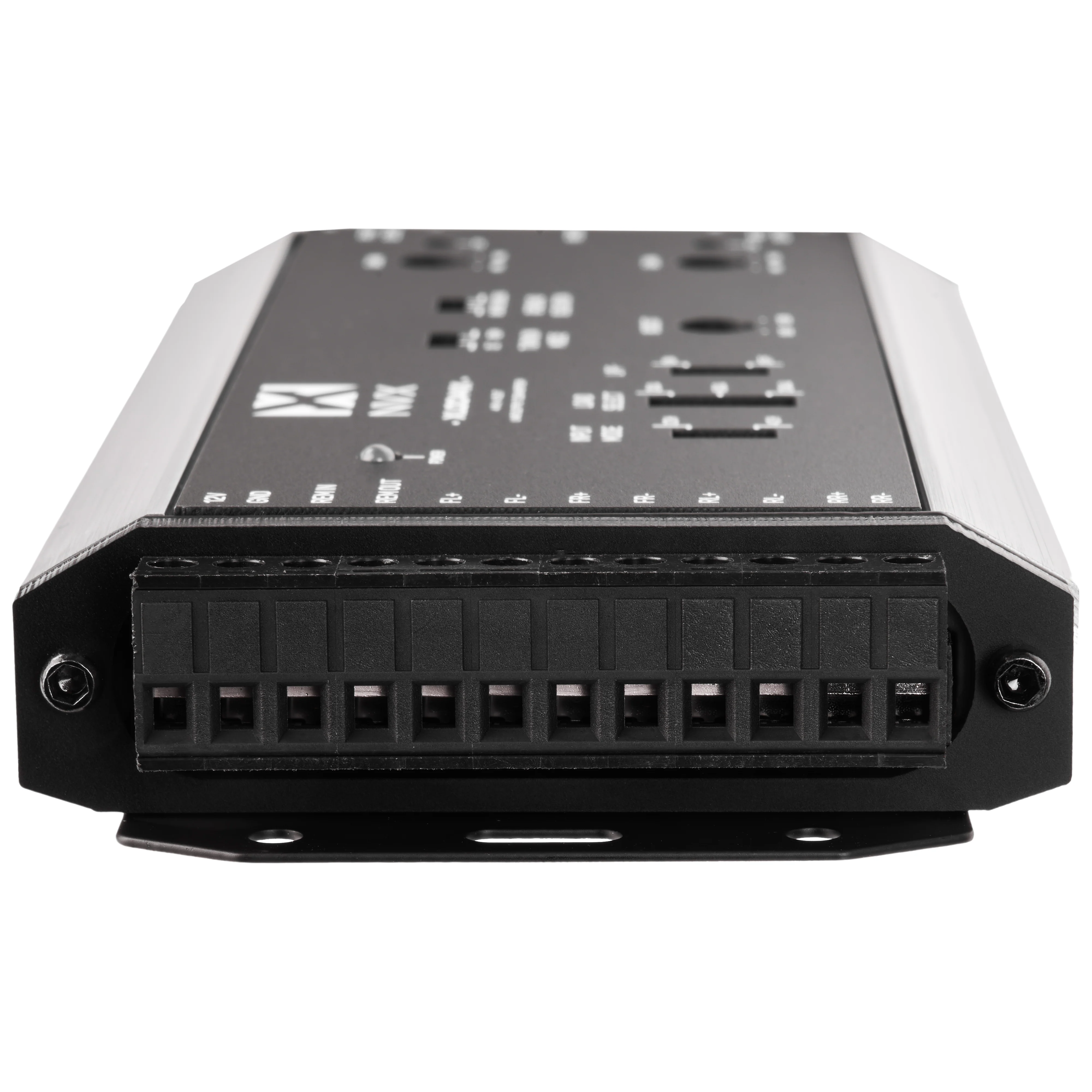

• Molex terminals for speaker signal and power

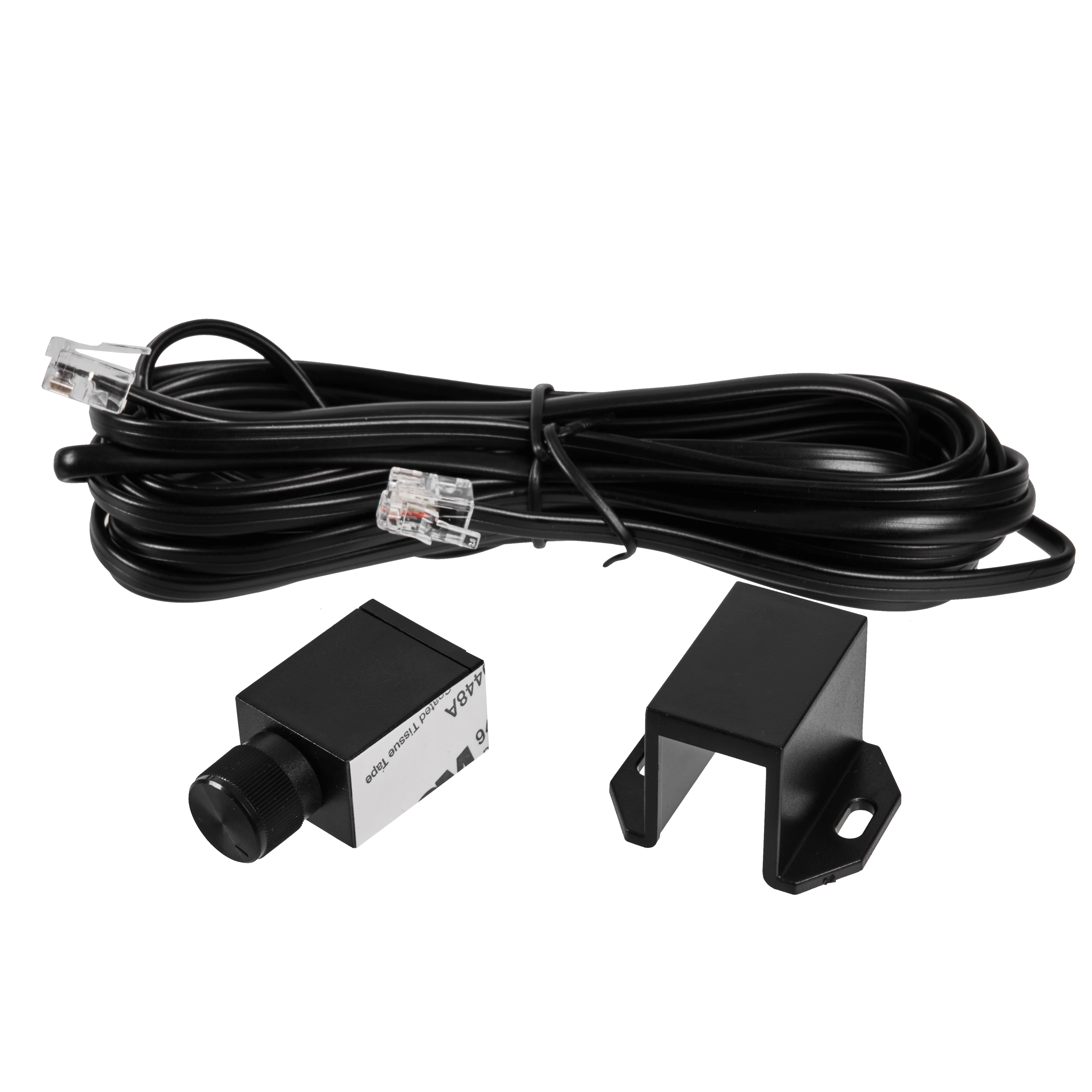

• Wired remote bass level control included
• LED clip status indicator
• Selectable impedance load: 20, 60, 20k ohm
• Frequency response: 10 - 20000 Hz
• Signal-to-noise ratio: 110dB
• Total harmonic distortion (THD): 0.01%

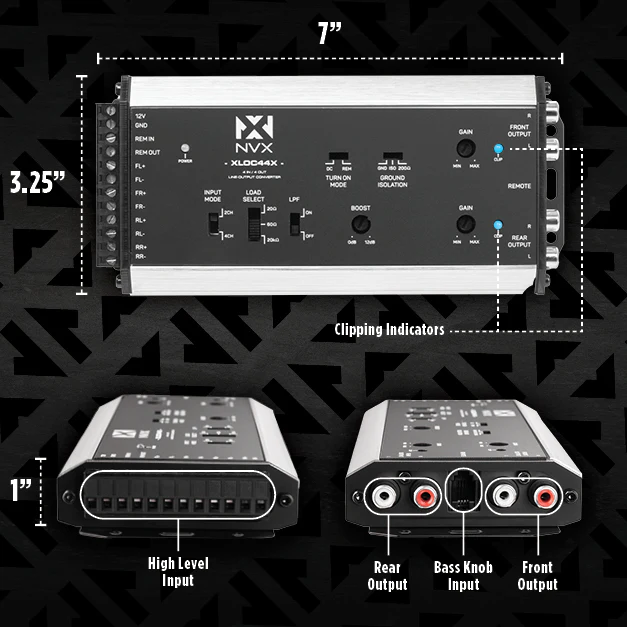

• Dimensions: 3.23" W x 6.97" L x 0.96" H
• 1-year Warranty from the Original Purchase Date
